Power: | Electronic | Standard: | BS EN1888-2012 5.10 Irregular surface test equipment; 8.10.3 Irregular surface test |
---|---|---|---|
Product Name: | Laboratory Testing Equipment | Display: | LCD display, touch screen control |
High Light: | Lab Test Equipment,Professional Test Equipment |

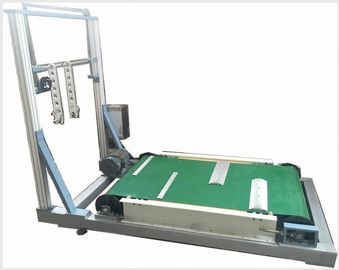

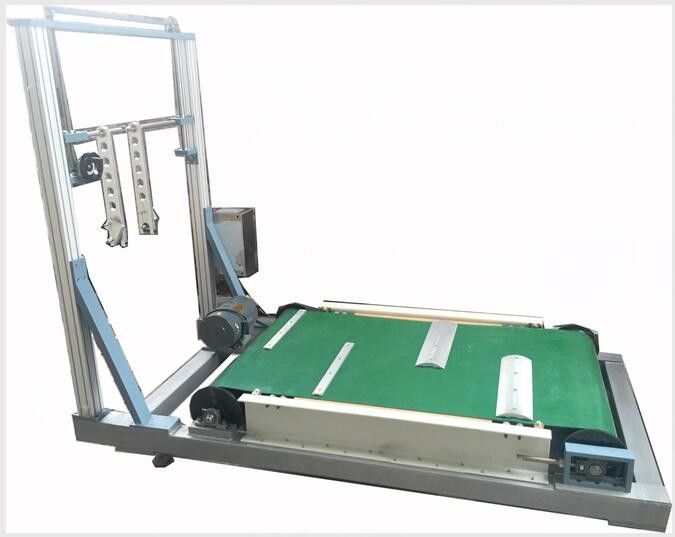

TC-004 Stroller Dynamic Road Condition and Durability Tester-- Irregular surface test equipment
The surface of the irregular surface test equipment shall comprise two types of obstacles: Type A and Type B.
These obstacles shall be mounted on a conveyor system so that the wheels on each side of the vehicle are lifted alternately. The conveyor system shall run at a speed of (5 ± 0,1) km/h.
The test apparatus comprises two independent articulating arms capable of moving independently of each
other in the vertical plane.
The test apparatus shall allow the articulating arms to be adjustable in height and across the width of the
irregular surface test equipment to accommodate different types and sizes of vehicle.
The articulating arms shall pivot around their fixing point.
When in the horizontal position, each arm shall exert a vertical force on the handles of (20 ± 1) N.
Technical parameters:
Work station:1 station
Test speed: 5km/h±0.1km/h(adjustable)
Motor:AC380V×3, ×3HP
Up and low distance:Max. 300mm
Effective width:Max. 1000mm

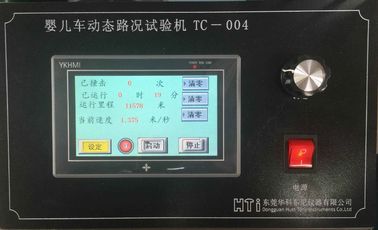

Timer:LCD,0-999,999
Loading:Max. 100Lb
Power:AC380V×3,×5KW
Size:(L×W×H) 3300×1400×1900mm
Weight: approx 600kg
Impact block: Type "A" obstacle, Type "B" obstacle
Standards:BS EN1888-2012 5.10 Irregular surface test equipment; 8.10.3 Irregular surface test
